Product Details:
|
| Material: | Fiber Glass | Color: | Gray Or White Or Custom |
|---|---|---|---|
| Frequency: | 915Mhz | Horizontal Beamwidth: | 360° |
| Vertical Beamwidth: | 7° | Gain: | 6Dbi |
| Size: | 660mm | Max Power: | 100W |
| Connector: | N-Female SMA TNC | Weight: | 0.3KG |
| High Light: | 915 mhz whip antenna,antenna 915 mhz |
||

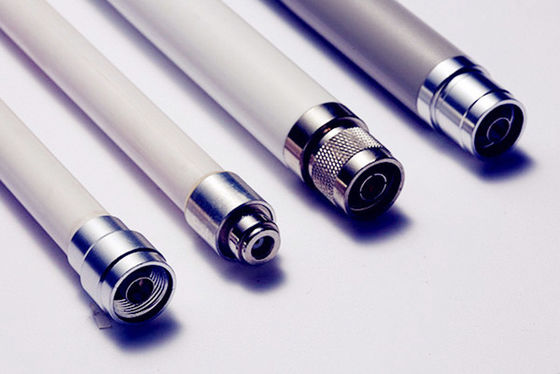

Outdoor Omni directional 6db 915mhz base antenna fiberglass antenna
Indoor and outdoor Outdoor Omni directional 6db 915mhz base antenna fiberglass antenna with a N-Female SMA TNC connector fiberglass antenna for Western Wifi router device.
| Antenna Type | Omnidirectional |
| Frequency Range | 915Mhz |
| Gain | 6 dbi |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 7° |
| VSWR | < 1.5:1 |
| Impedance | 50 Ω |
| Max Power | 100 watts |
| Polarization | Vertical |
| Connector | N-Female |
| Connector to Device | SMA-Male |
| Dimension | 660 mm |
| Weight | 0.3 kg |
| Material | Radome Fiberglass |
| Directional | False |
Reliability test:
These antennas were designed with the trucker in mind, and are great for the highway because they are stiff and stay more vertical than steel antennas at highway speeds, and work good clamped to the mirror frame, where they can pivot down out of the way if they hit something. However, for off-road use these antennas present some problems.
