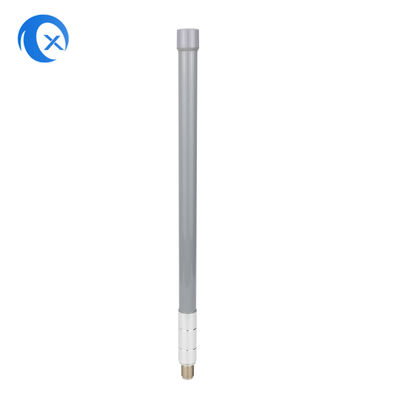

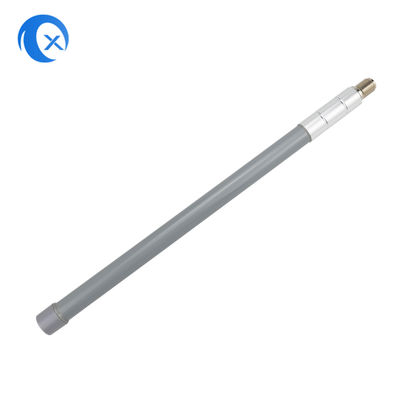

IP67 868 Mhz Fiberglass Base Station Antenna With N Female Connector
Our Product Introduction
for more products please visit us on omniwifiantenna.com
Basic Information
Place of Origin:
China
Brand Name:
TX
Certification:
ISO
Model Number:
TX-HG040-868
Minimum Order Quantity:
1
Price:
5.5-7.9 USD
Packaging Details:
Paper carton
Delivery Time:
2 weeks
Payment Terms:
T/T
Supply Ability:
100k Per month
Product Specification
Product Name:
868 MHz Antnena
Frequency:
868 MHz
Gain:
2 DBi
VSWR:
≤2.0
Input Impedance(Ω):
50
Polarization:
Vertical
Connector:
N Male Connector
Radone Color:
Grey, Black, White
Highlight:
868 Mhz Fiberglass Base Station Antenna
,IP67 Fiberglass Base Station Antenna
,N Female Connector 868 MHz Antenna
More Images
Our Product Introduction
for more products please visit us on omniwifiantenna.com
Product Description

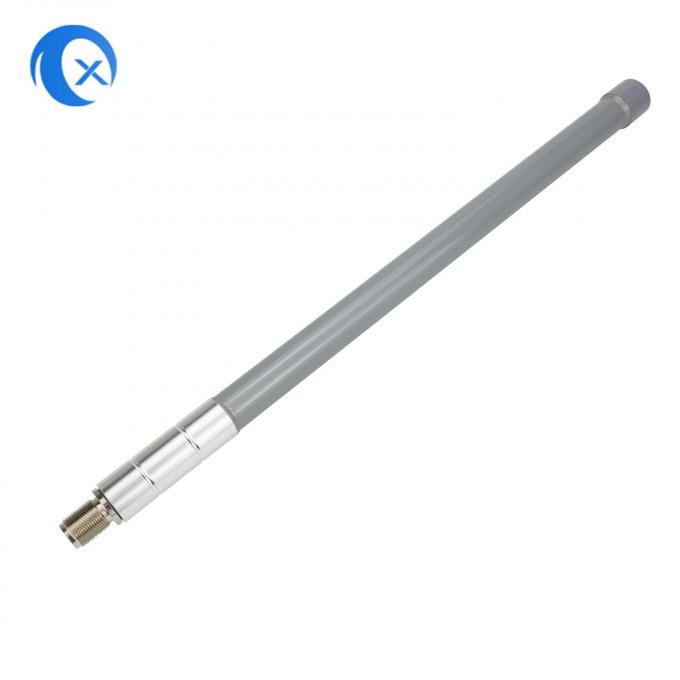

High Gain 40cm 868Mhz Outdoor Waterproof Fiberglass base station antenna with N female connector
Features:
1. Strong anti-shock, waterproof, and anti-corrosion ability.
2. Work around the clock.
3. Optimized size and frequency band.
4. High gain, low standing wave, strong anti-interference ability.
1. Strong anti-shock, waterproof, and anti-corrosion ability.
2. Work around the clock.
3. Optimized size and frequency band.
4. High gain, low standing wave, strong anti-interference ability.
Electrical Specifications of Ultra-wideband fiberglass antenna
|
Frequency range(Hz) |
868 MHz |
|
Gain (dBi) |
2 |
|
VSWR |
≤2.0 |
|
Input impedance(Ω) |
50 |
|
Polarization |
Vertical |
|
Lightning Protection |
DC Ground |
|
Input connector type |
N Male or Requested |
|
Mechanica Specifications |
|
|

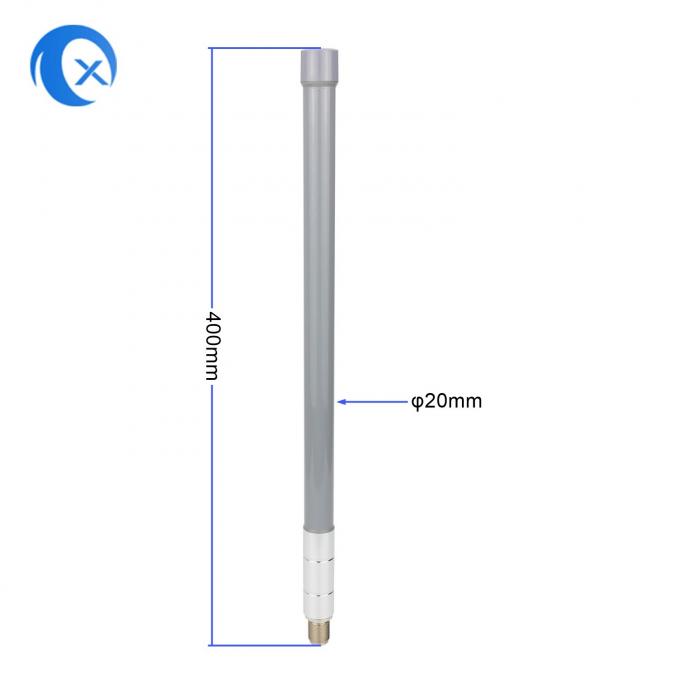

Dimensions(mm) |
20*400 |
|
Openrating temperature(℃) |
—45～85 |
|
Radome color |
Gray, Black, White |
Fiberglass Antenna for base station

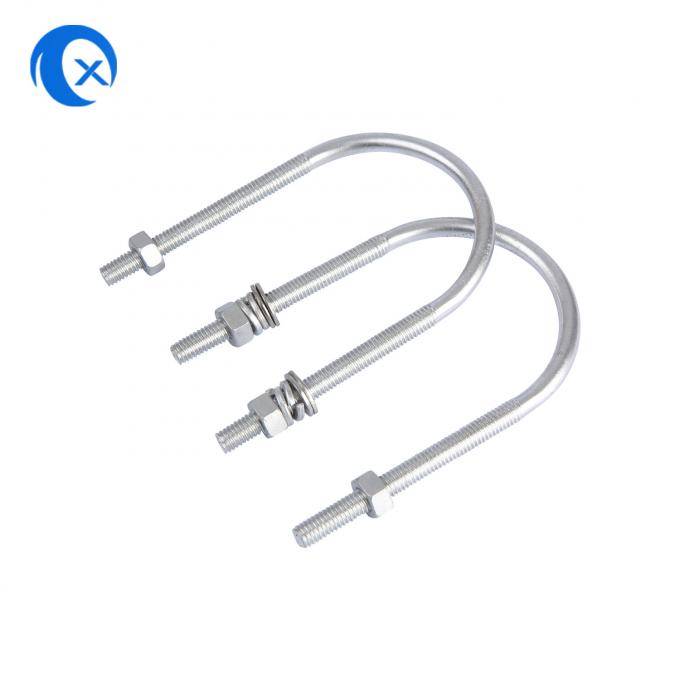

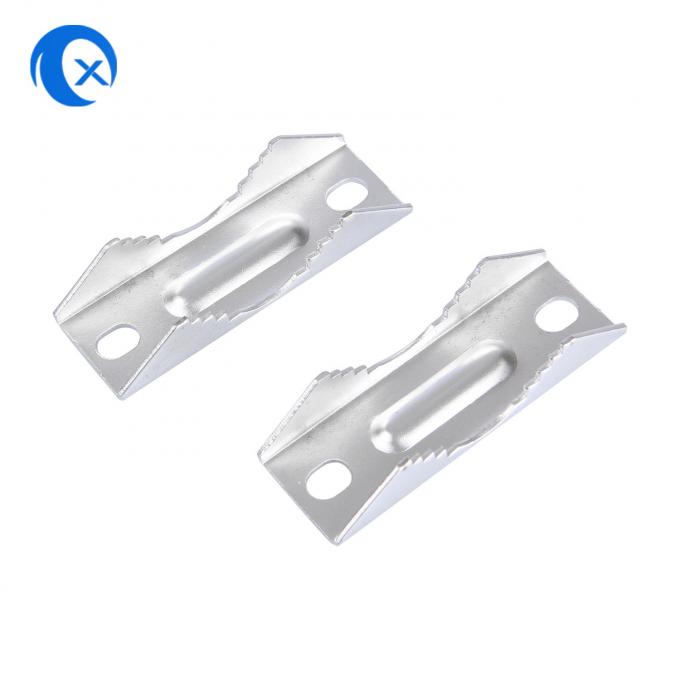

These series are heavy-duty, Omnidirectional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.
Product show:
Why choose us?
1. Hundreds of antenna products for optional, they are used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
2. We provide a one-stop solution of antennas, coaxial cables, and plastic parts by your requirements. With our complete in-house design, R&D, testing, and manufacturing services.
3. More than 200 employees, and auto-assembly lines in the factory, no worries about the production capability.
4. By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provides excellent services.
