Product Details:
|
Brand Name: | TX | Certificate: | ISO9001/CE/ROHS/FCC |
---|---|---|---|
Type: | Sticking Pad Antenna | Frequency: | GSM/GPRS |
Temperature Range: | -40~+85°C | Gain: | 3 Dbi/ Custome |
Size: | 22x115x4mm | Nominal Impedance: | 50 Ω |
Mounting: | Adhesive Sticking | Color: | Black |
Highlight: | high gain gsm antenna,mag mount antenna |

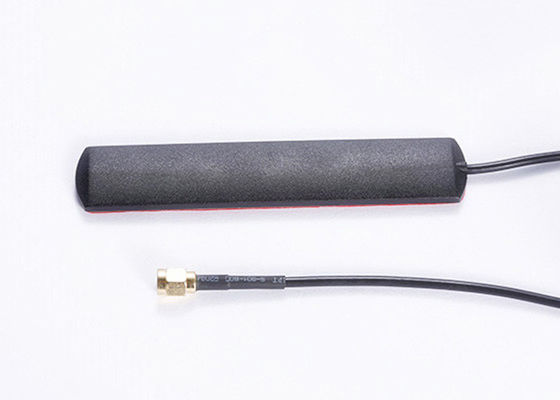

GSM GPRS Antenna flat patch adhesive sticking pad antenna 3m cable to sma male
Frequency(MHz):
|
GSM/GPRS | ||
Bandwidth(MHz):
|
20
|
||
VSWR
|
≤1.5
|
||
Gain
|
3DBi
|
||
Polarization
|
Vertical
|
||
Max Power(W):
|
50
|
||
Input Impedance(Ω):
|
50
|
||
Antenna size(mm):
|
115*22*4
|
||
Antenna Colour
|
Black
|
||
Mounting
|
Adhesive
|
||
Connector
|
SMA/TNC male etc.
|
||
Working Temp
|
-30℃~+80℃
|
||
Storage Temp
|
-30℃~+80℃
|
RF cable assemblies includes: RG141 /RG142 /RG174/ RG178 /RG179 /RG180/ RG187 /RG196 /RG213 /RG214 /RG218 /RG219/ RG223 /RG303 /RG316 /RG316-DS /RG393 /RG400 /RG401 /RG402 /RG405 /RG58/U
GSM GPRS Antenna, RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
We can provide other materials and plating specifications according to customers' requirements.
