Product Details:
|
| Antenna Type: | Marine/Boat Antenna | Polarization: | RHCP |
|---|---|---|---|
| Frequency Range: | 1575±5 MHz | Impedance: | 50 Ohms |
| Gain (dBi): | ≥28DB | Working Temp: | -40~+60 |
| Storage Temp: | -50~+85 | Cable Type: | RG 58 |
| Cable Length: | 5meter | Connector: | PL259/BNC/SMA/TNC/FME/MCX (Per Need) |
| Highlight: | active gps antenna,external gps antenna |
||

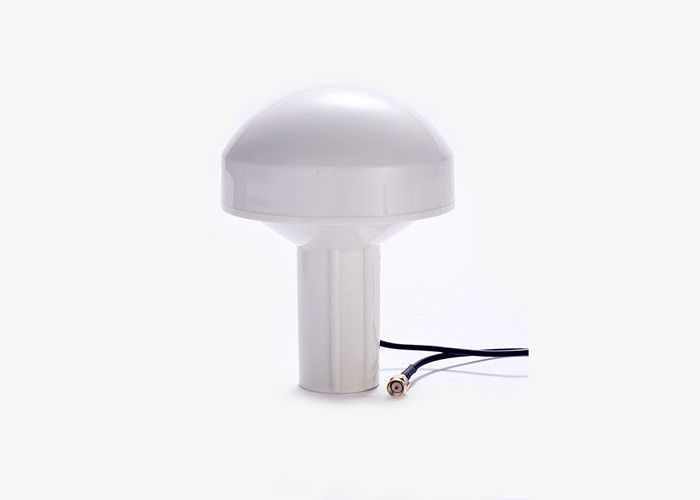

PL259/BNC/SMA/TNC/FME/MCX Mount Marine Antenna/GPS Antenna/Boat Antenna
Electrical Specifications
Frequency: 1575±5 MHz
VSWR: <1.5
Bandwidth: 10 MHz
Impendence: 50 ohm
Gain: ≥28DB
Polarization: RHCP
Lna Specifications
Lna Gain(without cable): 42±2 dB
Filter Insertion Loss: <3 dB
Noise Figure: <1.3
Current Consumption: 18-35mA
Dc voltage: 3-5V DC
Mechanical Specifications
Cable: RG58
Cable Length: 5 meter
Connector: PL259/BNC/SMA/TNC/FME/MCX (Per need)

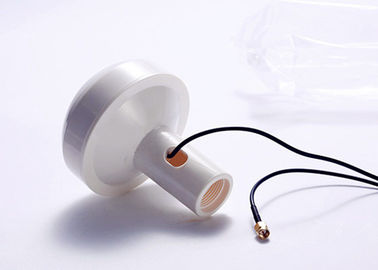

Mounting: 1" x 14-thread standard marine mounting
Environmental Specifications
Working temp: -40~+60
Storage temp: -50~+85
Humidity: 95%-100%rh
Weatherproof: IP65
All the internal & external antenna can be customized by customers, if any questions, pls feel free to contact with us, you're questions will be dealt with during 24 hours.
