Product Details:
|
| Type: | Internal Antenna | Material: | FPCB |
|---|---|---|---|
| Frequency Center: | 880 ~ 960 ; 1710 ~ 1880 MHz | Mounting: | Opening End Cable For Solder |
| Impendance: | 50 Ohms | Cable Type: | RG 0.81 / 1.13 |
| Operating Temperature(°c): | -40℃~+60℃ | Storage Temperature(°c): | -40℃~+65℃ |
| Size: | Customized | Poralization: | Liner |
| Highlight: | 4g lte external antenna,flexible pcb antenna |
||

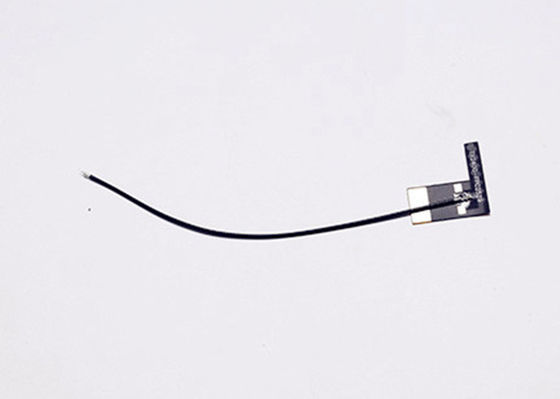

Custom size FPCB internal 2G 3G 4G full band Antenna With opening coaxial cable
Specifications:
size: Customized
cable L:10cm
connector:NULL
GSM internal FPCB antenna, fpcb for wifi antennas
3dbi High gain gsm antenna
1. Frequency Range:880 ~ 960 ; 1710 ~ 1880 MHz
2. V.S.W.R.:< 2.5(Test results may vary for different case.)
3. Max. Antenna Gain:-0.2 dBi ± 0.5 dBi @ 920 MHz-1.7 dBi ± 0.5 dBi @ 1780 MHz(Test results may vary for different case.)
4. Connector:NULL
5. Coaxial Cable Diameter:1.13 mm
6. Length of Cable:100 mm ± 5 mm (or customized )
7. Impedance:50 ohm
8. Polarization:Linear
9. Operation Temperature:-40C ~ + 65 C
10. Maximum Power: 30 dBm
We have more than 7 years OEM experience. If you have any ideas or suggestions about the frequency range, gain, package or appearance, we can make it come true accordingly.
Flexible Payment Method
You can pay via L/C , T/T and paypal.
Good after-sale Service
All of our products have one year quality warranty, free maintenance within warranty period. We stand behind our product FULLY and we guarantee that you will be satisfied. We still treat our customers as No.1. We provide complete service before and after the sale! We are here to serve the customers....NOT...the customer's payment. Trust and loyalty is what we aim for.
