Product Details:
|
| Model Name: | TX-AB71A | Material: | Plastic + Aluminum Alloy |
|---|---|---|---|
| Frequency Center: | GSM GPRS 900/1800mhz | Connector: | SMA Male Or Others |
| Max. Input Power: | 60W | Bandwidth: | 30MHz |
| Working Humidity: | 20~80% | Input Impedance: | 50 Ω |
| Cable Type: | RG174 | Cable Length: | 3m Or Customized |
| Highlight: | 3g gsm antenna,mag mount antenna |
||

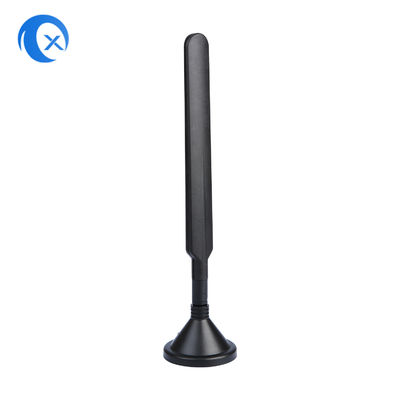

GPRS GSM Antenna RG174 Aerial Cable 900/1800MHz Magnetic Base for Car Radio Network System
3 Meter GPRS GSM Antenna RG174 SMA Male Aerial Cable 900/1800MHz Magnetic Base for Car Radio Network System
Features:
· This antenna is suitable for cars, trucks, boats or other vehicle use.
· It improves cell phone voice and data reception, adding bars of signal to your phone and increased data transfer speeds.
· It also helps prevent dropped calls.
· It doesn't require a direct connection to your phone, but rather works wirelessly.
· It can also work for multiple users at the same time.
Specification:
· Material: Plastic + aluminum alloy
· Color: Black
· Frequency range: 900-1800MHz
· Max. gain: 7-8dBi
· Bandwidth: 30MHz
· Max. input power: 60W
· Connector type: SMA
· Cable length: 3m / 9.84ft
| Electrical Specifications | |
| Frequency range(MHz) | 900-1800MHz |
| Gain (dBi) | 7/8 |
| Bandwidth(MHz) | 30 |
| VSWR | ≤1.5 |
| Input Impedance(Ω) | 50 |
| Polarization | Vertical |
| Maximum input power(W) | 50 |
| Input connector type | RP-SMA Male or Requested |
| Mechanical Specifications | |
| Cable length(m) | 3Meter/ 9.84ft |
| Cable type | RG174 |
| Connector type | SMA male or RP-SMA male |
| Antenna weight(g) | 50 |
| Mounting way | Magnetic adsorption |
| Radome color | Black |
| Operating temperature(°c) | -40~60 |
All the internal & external antenna can be customized by customers, if any questions, pls feel free to contact with us, you're questions will be dealt with during 24 hours.
