Product Details:
|
| Product Name: | 915 MHz Antnena | Frequency: | 915 MHz |
|---|---|---|---|
| Gain: | 5 DBi | VSWR: | ≤2.0 |
| Input Impedance(Ω): | 50 | Polarization: | Vertical |
| Connector: | N Female Connector | Radone Color: | Grey, Black, White |
| Highlight: | Fiberglass 915 MHz Antenna,LoRa 915 MHz Antenna,Omnidirectional N Female Connector Antenna |
||

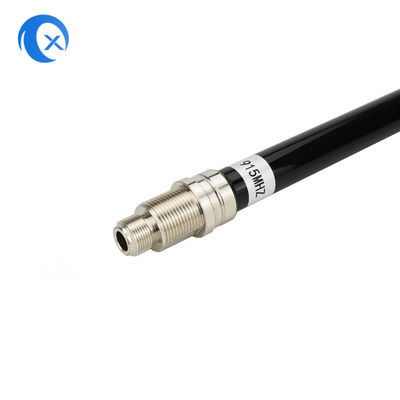

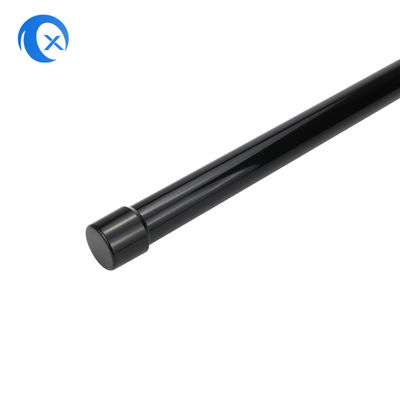

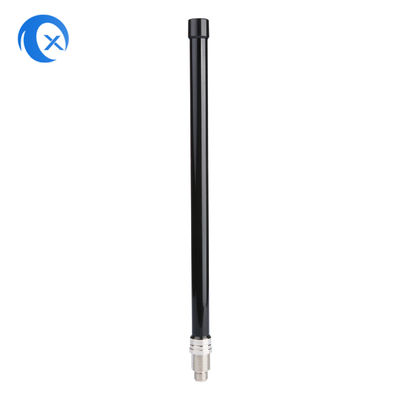

Omnidirectional 915 MHz fiberglass antenna with N-type female connector
Electrical Specifications of Ultra-wideband fiberglass antenna
|
Frequency range(Hz) |
915 MHz |
|
Gain (dBi) |
5 |
|
VSWR |
≤2.0 |
|
Input impedance(Ω) |
50 |
|
Polarization |
Vertical |
|
Lightning Protection |
DC Ground |
|
Input connector type |
N Male or Requested |
|
Mechanica Specifications |
|
|
Dimensions(mm) |
16*355 |
|
Openrating temperature(℃) |
—45～85 |
|
Radome color |
Gray, Black, White |
Fiberglass Antenna for base station
These series are heavy-duty, Omnidirectional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.
