5G 5.8G 5dBi Waterproof Fiberglass Antenna With SMA Male Connector

5G 5.8G 5dBi Waterproof Fiberglass Antenna With SMA Male Connector
5G 5.8G 5dBi Waterproof Fiberglass Antenna With SMA Male Connector 5G 5.8G 5dBi Waterproof Fiberglass Antenna With SMA Male Connector 5G 5.8G 5dBi Waterproof Fiberglass Antenna With SMA Male Connector 5G 5.8G 5dBi Waterproof Fiberglass Antenna With SMA Male Connector 5G 5.8G 5dBi Waterproof Fiberglass Antenna With SMA Male Connector

Large Image :  5G 5.8G 5dBi Waterproof Fiberglass Antenna With SMA Male Connector

Product Details:
Place of Origin: China
Brand Name: TX
Certification: ISO
Model Number: TX-HG043
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 5.5-7.9 USD
Packaging Details: Paper carton
Delivery Time: 2 weeks
Payment Terms: T/T
Supply Ability: 100k Per month

5G 5.8G 5dBi Waterproof Fiberglass Antenna With SMA Male Connector

Description
Product Name: Fiberglass Antenna Frequency: 5150-5850MHz
Gain: 5 DBi VSWR: ≤2.0
Input Impedance(Ω): 50 Polarization: Vertical
Connector: SMA Male Connector Radone Color: Grey, Black, White
Highlight:

Waterproof Fiberglass Antenna

,

SMA Male Connector Fiberglass Antenna

,

Fiberglass 5dBi Antenna

 5G 5.8G 5dBi Outdoor Waterproof Fiberglass Antenna With SMA Male Connector



Features:
1. Strong anti-shock, waterproof, and anti-corrosion ability.
2. Work around the clock.
3. Optimized size and frequency band.
4. High gain, low standing wave, strong anti-interference ability.


Electrical Specifications of Ultra-wideband fiberglass antenna

Frequency range(Hz)

5150-5850 MHz

Gain (dBi)

5

VSWR

≤2.0

Input impedance(Ω)

50

Polarization

Vertical

Lightning Protection

DC Ground

Input connector type

SMA Male or Requested

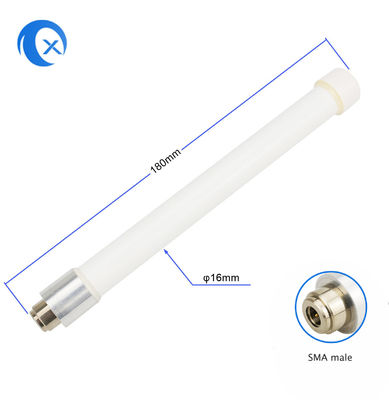

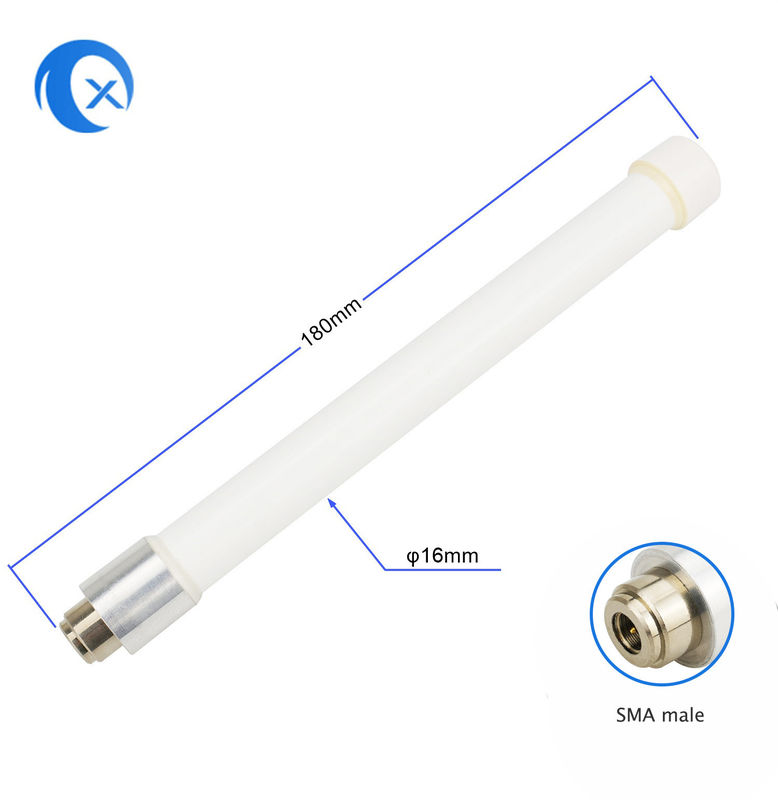

Mechanica Specifications

Dimensions(mm)

16*180

Openrating temperature(℃)

—45~85

Radome color

Gray, Black, White



Fiberglass Antenna for base station

These series are heavy-duty, Omnidirectional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.



Why choose us?

1. Hundreds of antenna products for optional, they are used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
2. We provide a one-stop solution of antennas, coaxial cables, and plastic parts by your requirements. With our complete in-house design, R&D, testing, and manufacturing services.
3. More than 200 employees, and auto-assembly lines in the factory, no worries about the production capability.
4. By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provides excellent services.



Product show:

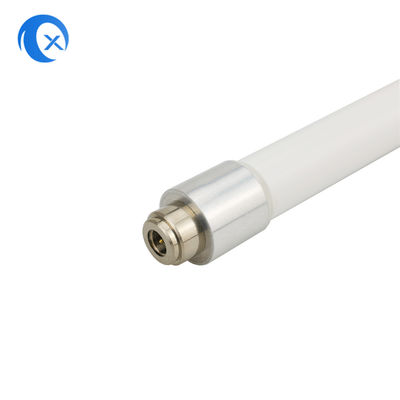

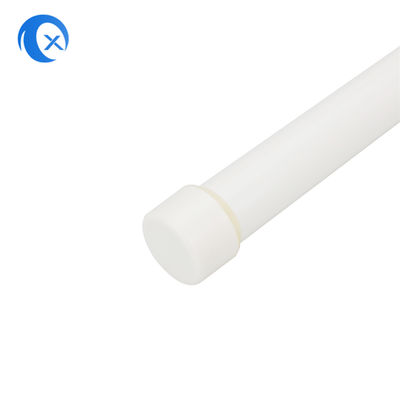

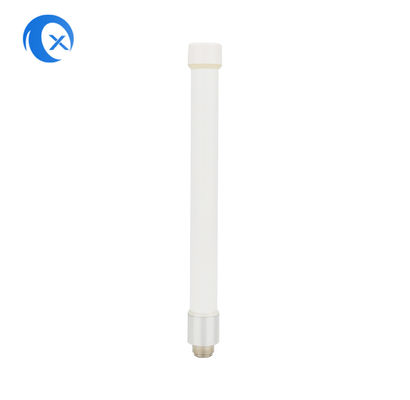

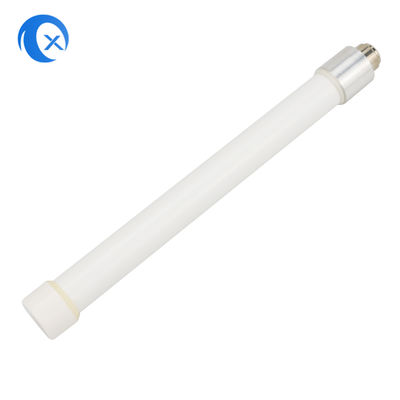

5G 5.8G 5dBi Waterproof Fiberglass Antenna With SMA Male Connector 05G 5.8G 5dBi Waterproof Fiberglass Antenna With SMA Male Connector 15G 5.8G 5dBi Waterproof Fiberglass Antenna With SMA Male Connector 2
