22dBi Active Ceramic GPS Antenna With U.FL IPEX Female Connector

22dBi Active Ceramic GPS Antenna With U.FL IPEX Female Connector
22dBi Active Ceramic GPS Antenna With U.FL IPEX Female Connector 22dBi Active Ceramic GPS Antenna With U.FL IPEX Female Connector 22dBi Active Ceramic GPS Antenna With U.FL IPEX Female Connector 22dBi Active Ceramic GPS Antenna With U.FL IPEX Female Connector

Large Image :  22dBi Active Ceramic GPS Antenna With U.FL IPEX Female Connector

Product Details:
Place of Origin: China
Brand Name: TX
Certification: ISO
Model Number: TX-AG008
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 6.9-9.9 USD
Packaging Details: Paper carton
Delivery Time: 2 weeks
Payment Terms: T/T
Supply Ability: 100k Per month

22dBi Active Ceramic GPS Antenna With U.FL IPEX Female Connector

Description
Product Name: Magnetic Base Antenna Frequency: 1575.42
Gain: 22 DBi VSWR: ≤2.0
Input Impedance(Ω): 50 Polarization: Linear
Connector: U.FL Or Requested Radone Color: Grey, Black, White
High Light:

Active Ceramic GPS Antenna

,

U.FL IPEX Female Connector GPS Antenna

,

22dBi IPEX GPS Antenna

22dBi High Gain Built-in Active Ceramic GPS Antenna with U. FL Ipex Female Connector

Types of Tengxiang's GPS navigation antennas:

1. GPS, Beidou, and GNSS antennas
2. Passive GPS antennas
3. Active GPS antennas
4. Integrated GPS antennas
5. External GPS antennas

6. Patch antennas


Electrical Specifications of GPS navigation antenna


Frequency range(Hz) 1575.42 MHz
Gain (dB) 22
VSWR ≤2.0
Input impedance(Ω) 50
Polarization Linear
Lightning Protection DC Ground
Input connector type U.FL or Requested
Mechanica Specifications
Dimensions(mm)
Openrating temperature(℃) —45~85
Radome color Gray, Black, White


What is a GPS navigation antenna?


A GPS antenna is a radio frequency antenna that provides connectivity with the Global Positioning System, a proprietary, satellite-based radio navigation system designed, created, and owned by the United States Government. When appropriately connected to a GPS transceiver, the GPS antenna is able to transmit and receive the specific radio frequency signals needed for a GPS device to perform its time, location, and navigation functions. In performing this function GPS antennas become the key point of interaction between the satellites which form the GPS Space Segment and the GPS User segment (receivers). The output of the GNSS or GPS antenna is fed into a GNSS or GPS receiver that can compute the position.




Passive vs. Active GPS Antennas


There are two types of GPS antennas: passive and active. Passive antennas idly receive GPS signals and pass those signals to a GPS navigation device. Active units include a powered amplifier that allows the antenna to pull signals from larger distances. Amplified antennas nearly double the signal reception range of a GPS device.

Active antennas are typically more expensive and more challenging to install than passive antennas. Still, these antennas can be installed farther away from a GPS tracker. For this reason, these are better suited for large vehicles or situations where a signal must be maintained.



GPS antenna applications

The uses of GPS technology span a multitude of industries including:

● Marine

● Agriculture

● Transportation and Logistics

● Aviation

● Defense

● Emergency Services

● Infrastructure

● Security

Products show:

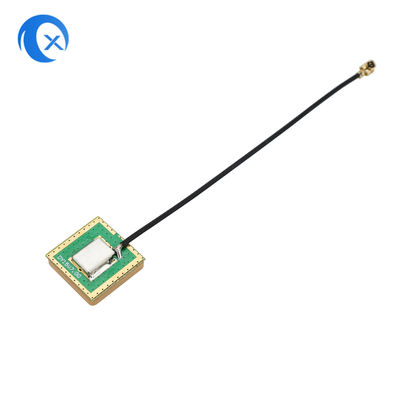

22dBi Active Ceramic GPS Antenna With U.FL IPEX Female Connector 0

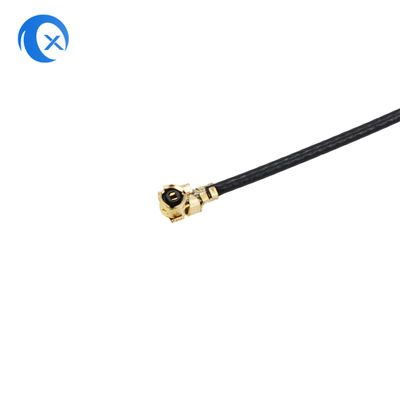

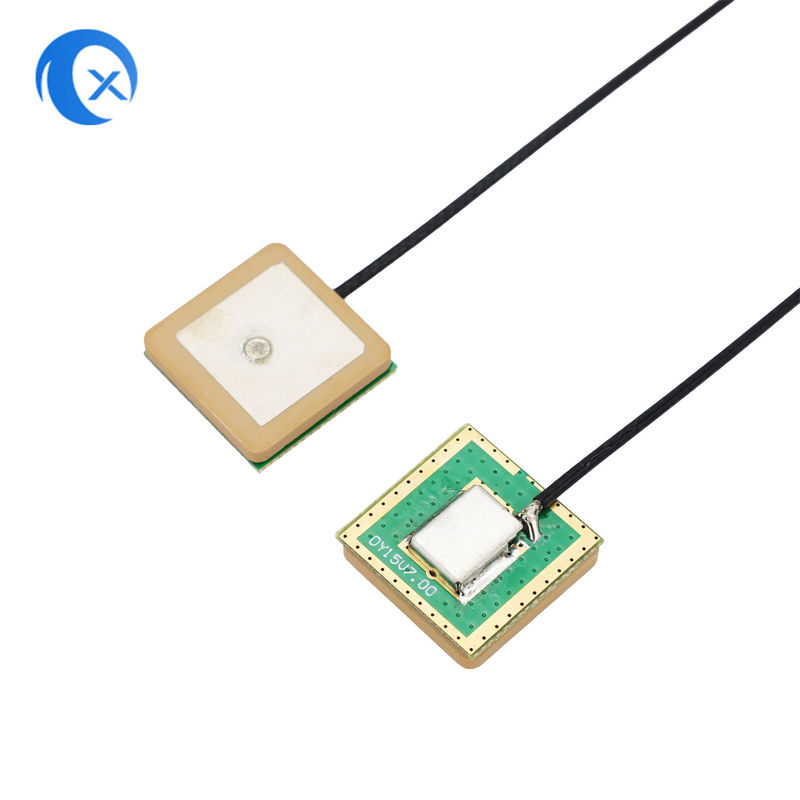

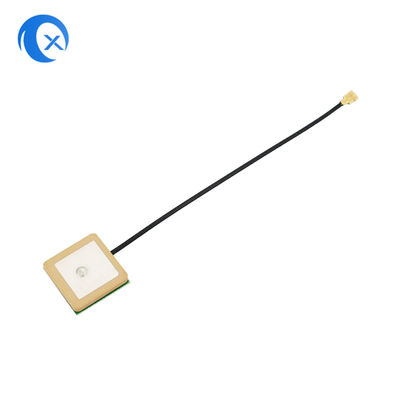

22dBi Active Ceramic GPS Antenna With U.FL IPEX Female Connector 122dBi Active Ceramic GPS Antenna With U.FL IPEX Female Connector 222dBi Active Ceramic GPS Antenna With U.FL IPEX Female Connector 3

Why choose us?

1. Hundreds of antenna products for optional, they are used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
2. We provide a customized solution for your requirements for antennas, coaxial cables, and plastic parts. With our in-house design, R&D, testing, and manufacturing.
3. Professional and experienced employees, and auto-assembly lines in the factory, no worries about the production capability.
4. By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provides excellent services.
