Helium Hotspot Bobcat 300 Miner 4dBi Magnetic Base Antenna With Extension Cable

Helium Hotspot Bobcat 300 Miner 4dBi Magnetic Base Antenna With Extension Cable
Helium Hotspot Bobcat 300 Miner 4dBi Magnetic Base Antenna With Extension Cable Helium Hotspot Bobcat 300 Miner 4dBi Magnetic Base Antenna With Extension Cable Helium Hotspot Bobcat 300 Miner 4dBi Magnetic Base Antenna With Extension Cable Helium Hotspot Bobcat 300 Miner 4dBi Magnetic Base Antenna With Extension Cable Helium Hotspot Bobcat 300 Miner 4dBi Magnetic Base Antenna With Extension Cable

Large Image :  Helium Hotspot Bobcat 300 Miner 4dBi Magnetic Base Antenna With Extension Cable

Product Details:
Place of Origin: China
Brand Name: TX
Certification: ISO
Model Number: TX-AB039
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 6.9-9.9 USD
Packaging Details: Paper carton
Delivery Time: 2 weeks
Payment Terms: T/T
Supply Ability: 100k Per month

Helium Hotspot Bobcat 300 Miner 4dBi Magnetic Base Antenna With Extension Cable

Description
Product Name: Magnetic Base Antenna Frequency: 915 MHz
Gain: 4 DBi VSWR: ≤2.0
Input Impedance(Ω): 50 Cable Type: RG58

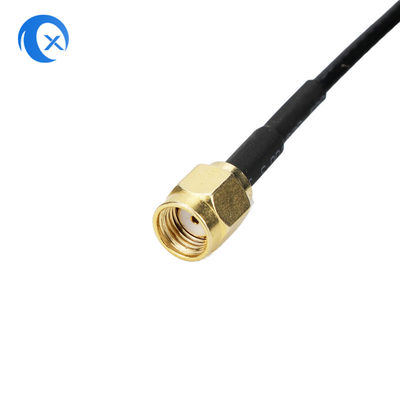

Connector: RP SMA Or SMA Male Connector Radone Color: Grey, Black, White
High Light:

4dBi Magnetic Base Antenna

,

Bobcat 300 Miner Magnetic Base Antenna

,

Helium Hotspot Miner 4dBi Antenna

Helium hotspot 4 dBi magnetic base antenna Bobcat 300 miner with extension cable





Magnetic base antennas



This magnetic base antenna provides a single or multi-band for DVB-T, 900MHz, 1800MHz, 1900MHz, GSM, GPS, 2.4GHz, 5GHz.
The compact design of this type of antenna is ideal for extending the operation coverage. The magnetic and suck cap base is suitable for fixing any flat and metal surfaces.
DVB-T, GSM, ISM, WLAN, wireless video applications.
400MHz~870MHz, 900/1800/1900MHz and 2.4/5GHz systems.
The amplifier integrated an active antenna.
High performance and compact size.
Magnetic or sucker base mounting.
Fix or tilt-swivel flexibility.
RoHS compliant.



Electrical Specifications of magnetic base antenna

Frequency range(Hz) 470MHz 868MHz 915MHz 923MHz
Gain (dB) 4 dBi or requested
VSWR ≤2.0
Input impedance(Ω) 50
Polarization Linear
Lightning Protection DC Ground
Input connector type SMA Male or Requested
Mechanica Specifications
Dimensions(mm)
Openrating temperature(℃) —45~85
Radome color Gray, Black, White



Magnetic base antenna



A magnetic antenna base, also known as a mag-mount, or magnetic mount is a type of antenna mount that uses magnetism to attach itself securely to a metal surface. The attachment is non-permanent making it a flexible mounting solution for a range of applications. Most mag mounts consist of a radio frequency connector which is embedded in a plastic housing that holds the magnets and attached to an antenna cable for connection to the downstream device. They may also have a rubber boot for added protection for both the mount and the vehicle.

Magnetic mounts can vary in size (diameter), the strength of the magnet, and the length of the coaxial cable attached to the mount connector. Heavy-duty mag mounts may comprise three magnet bases and are used for large antennas. They also need to be matched to the antenna connector or used with a suitable adapter. The strength of magnetic mounts should not be underestimated; the attraction can cause the mount to snap on and injure your fingertips!

Mag-mounts can be used with

  • Whip antennas
  • Rubber ducky antennas
  • Helical antennas
  • Umbrella antennas
  • Mushroom antennas



Why choose us?

1. Hundreds of antenna products for optional, they are used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
2. We provide a customized solution for your requirements for antennas, coaxial cables, and plastic parts. With our in-house design, R&D, testing, and manufacturing.
3. Professional and experienced employees, and auto-assembly lines in the factory, no worries about the production capability.
4. By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provides excellent services.



Products show:



Helium Hotspot Bobcat 300 Miner 4dBi Magnetic Base Antenna With Extension Cable 0



Helium Hotspot Bobcat 300 Miner 4dBi Magnetic Base Antenna With Extension Cable 1Helium Hotspot Bobcat 300 Miner 4dBi Magnetic Base Antenna With Extension Cable 2
