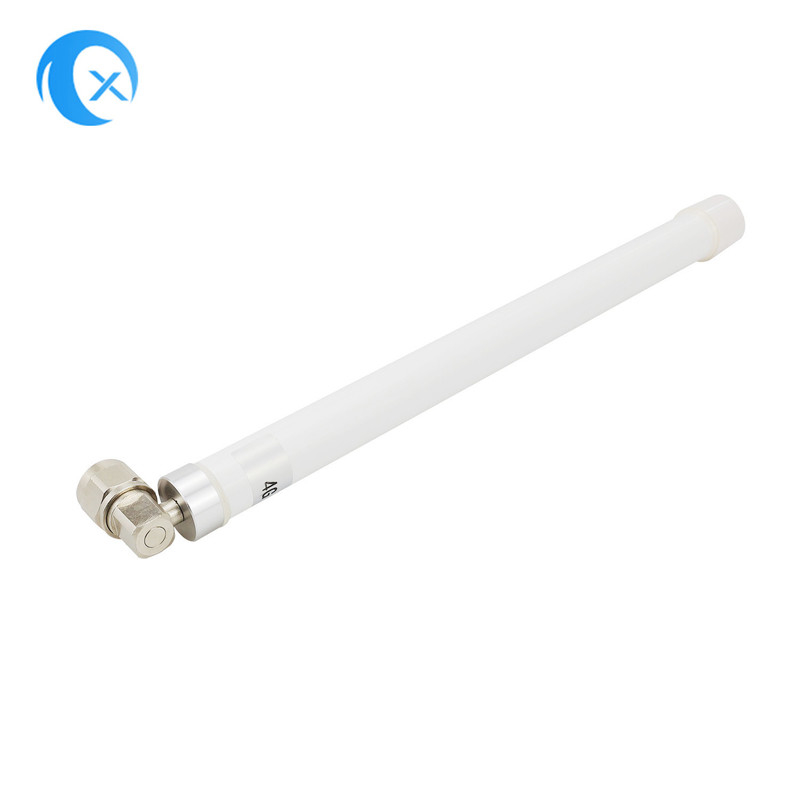

6dBi Fiberglass Base 4G LTE Antenna With Right Angle N Male Connector

6dBi Fiberglass Base 4G LTE Antenna With Right Angle N Male Connector
6dBi Fiberglass Base 4G LTE Antenna With Right Angle N Male Connector

Large Image :  6dBi Fiberglass Base 4G LTE Antenna With Right Angle N Male Connector

Product Details:
Place of Origin: China
Brand Name: TX
Certification: ISO
Model Number: TX-HG015
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 5.5-7.9 USD
Packaging Details: Paper carton
Delivery Time: 2 weeks
Payment Terms: T/T
Supply Ability: 100k Per month

6dBi Fiberglass Base 4G LTE Antenna With Right Angle N Male Connector

Description
Product Name: Fiberglass Antenna Frequency: 694-960/1710-2170MHz
Gain: 6 DBi VSWR: ≤2.0
Input Impedance(Ω): 50 Polarization: Vertical
Connector: SMA Male Connector Radone Color: Grey, Black, White
High Light:

6dBi 4G LTE Antenna

,

2170MHz 4G LTE Antenna

,

6dBi Fiberglass Base Antenna

6dBi Fiberglass Base 4G LTE Antenna With Right Angle N Male Connector



 4G LTE fiberglass base-station antenna with right angle N male connector



Features:
1. Strong anti-shock, waterproof, and anti-corrosion ability.
2. Work around the clock.
3. Optimized size and frequency band.
4. High gain, low standing wave, strong anti-interference ability.


Electrical Specifications of Ultra-wideband fiberglass antenna

Frequency range(Hz)

694-960/1710-2170MHz

Gain (dBi)

6

VSWR

≤2.0

Input impedance(Ω)

50

Polarization

Vertical

Lightning Protection

DC Ground

Input connector type

SMA Male or Requested

Mechanica Specifications

Dimensions(mm)

20*295

Openrating temperature(℃)

—45~85

Radome color

Gray, Black, White



Fiberglass Antenna for base station

These series are heavy-duty, Omnidirectional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.



Why choose us?

1. Hundreds of antenna products for optional, they are used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
2. We provide a one-stop solution of antennas, coaxial cables, and plastic parts by your requirements. With our complete in-house design, R&D, testing, and manufacturing services.
3. More than 200 employees, and auto-assembly lines in the factory, no worries about the production capability.
4. By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provides excellent services.



Product show:

6dBi Fiberglass Base 4G LTE Antenna With Right Angle N Male Connector 06dBi Fiberglass Base 4G LTE Antenna With Right Angle N Male Connector 16dBi Fiberglass Base 4G LTE Antenna With Right Angle N Male Connector 2
