Product Details:
|
| Product: | 8dBi Fiberglass Antenna | Frequency Band: | 858-878 MHz |
|---|---|---|---|
| Peak Gain: | 8dBi | VSWR: | ≤1.5 |
| Polarization: | Vertical | Efficiency: | ≤65% |
| Color: | White, Grey, Or Black | Cover Material: | Fiberglass |
| Connector: | N-type Male | Dimensions: | φ25*1300mm |
| Highlight: | Fiberglass Bobcat Helium Miner Antenna,868MHz Helium Antenna,8dBi Helium Antenna |
||

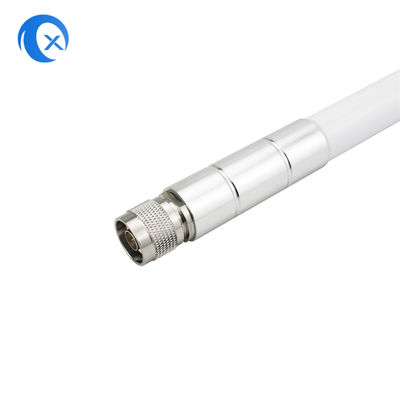

8dbi 868mhz Lora Fiberglass Helium Antenna Bobcat Helium Miner Antenna Outdoor for RAK HNT Bobcat Helium Hotspot Miner
Electrical Specifications of Ultra-wideband fiberglass antenna
| Frequency range(Hz) | 858-878 MHz |
| Gain (dBi) | 8 |
| VSWR | ≤1.5 |
| Input impedance(Ω) | 50 |
| Polarization | Vertical |
| Lightning Protection | DC Ground |
| Input connector type | N male or Requested |
| Mechanica Specifications | |
| Dimensions(mm) | 25*1300 |
| Openrating temperature(℃) | —45～85 |
| Radome color | Gray, Black, White |
Fiberglass Antenna for base station
These series are heavy-duty, Omnidirectional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.
Product show:
Why choose us?
Contact us
915MHz 8dBi fiberglass antenna white Lora Lorawan Helium Hotspot Miner Indoor/Outdoor Antenna
