Product Details:
|
| Product: | Helium Antenna | Frequency Band: | 900-930MHz |
|---|---|---|---|
| Peak Gain: | 4dBi | VSWR: | ≤1.5 |
| Polarization: | Dongguan, China (Mainland) | Shaping Mode: | Vertical |
| Efficiency: | ≤65% | Cover Material: | White, Grey, Or Black |
| Connector: | Fiberglass | Dimensions: | φ25*1200mm |
| Highlight: | RAK Nebra Hotspot Miner Helium Antenna,4dBi Helium Antenna,Omnidirectional LoRa Antenna |
||

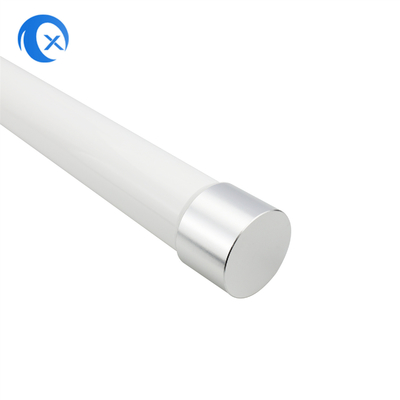

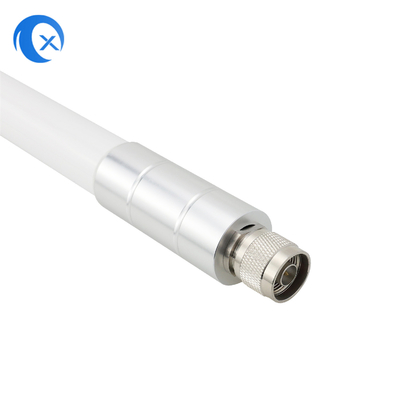

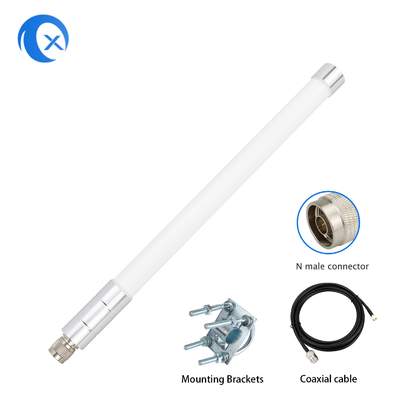

4 dBi Helium Antenna 915Mhz Outdoor Indoor Omni-Directional Lora Antenna for RAK Nebra hotspot miner
Electrical Specifications of Ultra-wideband fiberglass antenna
| Frequency range(Hz) | 902-928 MHz |
| Gain (dBi) | 4 |
| VSWR | ≤1.5 |
| Input impedance(Ω) | 50 |
| Polarization | Vertical |
| Lightning Protection | DC Ground |
| Input connector type | N female or Requested |
| Mechanica Specifications | |
| Dimensions(mm) | φ25*420 |
| Openrating temperature(℃) | —45～85 |
| Radome color | Gray, Black, White |
Fiberglass Antenna for base station
These series are heavy-duty, Omnidirectional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.
