Product Details:
|
| Product Name: | Magnetic Base Antenna | Frequency: | 806-960MHz / 1710-2690MHz |
|---|---|---|---|
| Gain: | 3.73 DBi | VSWR: | ≤2.0 |
| Input Impedance(Ω): | 50 | Polarization: | Linear |
| Connector: | RP SMA Or SMA Male Connector | Radone Color: | Grey, Black, White |
| Highlight: | LTE Magnetic Mount Antenna,4G Magnetic Mount Antenna,SMA Connector Magnetic Base Antenna |
||

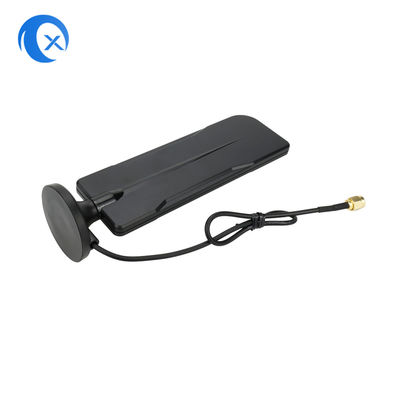

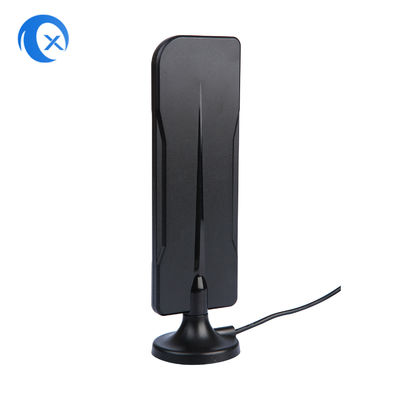

4G/LTE 3.73dBi Magnetic Mount Antenna, Backward Compatible to 3G & 2G with Low Loss Cable and SMA(m) Connector
4G LTE antenna
4G LTE, is a standard for wireless communication of high-speed data for data terminals and mobile phones. It is based on the GSM/EDGE and UMTS/HSPA network technologies, increasing the capacity and speed using a different radio interface together with network improvements.
Tengxiang’s 698~2700 MHz Antennas offer excellent performance that covers 3G/4G/LTE cellular networks.
The antennas are well suited for DAS (Distributed Antenna Systems) and 802.11a/b/g/n and 802.11ac WiFi applications.
These 698~2700 MHz Antennas are available in patch, omnidirectional, ceiling mount, sector, and LPDA.
Magnetic base antennas
This magnetic base antenna provides a single or multi-band for DVB-T, 900MHz, 1800MHz, 1900MHz, GSM, GPS, 2.4GHz, 5GHz.
The compact design of this type of antenna is ideal for extending the operation coverage. The magnetic and suck cap base is suitable for fixing any flat and metal surfaces.
DVB-T, GSM, ISM, WLAN, wireless video applications.
400MHz~870MHz, 900/1800/1900MHz and 2.4/5GHz systems.
The amplifier integrated an active antenna.
High performance and compact size.
Magnetic or sucker base mounting.
Fix or tilt-swivel flexibility.
RoHS compliant.
Electrical Specifications of magnetic base antenna
| Frequency range(Hz) | 806-960MHz / 1710-2690MHz |
| Gain (dB) | 3.73 |
| VSWR | ≤2.0 |
| Input impedance(Ω) | 50 |
| Polarization | Linear |
| Lightning Protection | DC Ground |
| Input connector type | RPSMA Male or Requested |
| Mechanica Specifications | |
| Dimensions(mm) | |
| Openrating temperature(℃) | —45～85 |
| Radome color | Gray, Black, White |
Magnetic base antenna
A magnetic antenna base, also known as a mag-mount, or magnetic mount is a type of antenna mount that uses magnetism to attach itself securely to a metal surface. The attachment is non-permanent making it a flexible mounting solution for a range of applications. Most mag mounts consist of a radio frequency connector which is embedded in a plastic housing that holds the magnets and attached to an antenna cable for connection to the downstream device. They may also have a rubber boot for added protection for both the mount and the vehicle.
Magnetic mounts can vary in size (diameter), the strength of the magnet, and the length of the coaxial cable attached to the mount connector. Heavy-duty mag mounts may comprise three magnet bases and are used for large antennas. They also need to be matched to the antenna connector or used with a suitable adapter. The strength of magnetic mounts should not be underestimated; the attraction can cause the mount to snap on and injure your fingertips!
Mag-mounts can be used with
Why choose us?
Products show:
Antenna S parameters plots
