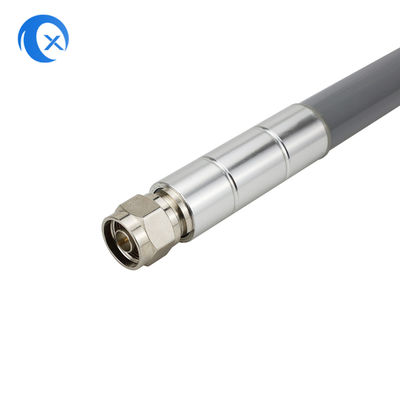

915MHz 5dBi Outdoor Fiberglass Helium Antenna Us915 Lora Lorawan Rak Miner Antenna
Features:
1. Strong anti-shock, waterproof, and anti-corrosion ability.
2. Work around the clock.
3. Optimized size and frequency band.
4. High gain, low standing wave, strong anti-interference ability.
Electrical Specifications of Ultra-wideband fiberglass antenna
| Frequency range(Hz) |
902-928 MHz |
| Gain (dBi) |
5 |
| VSWR |
≤1.5 |
| Input impedance(Ω) |
50 |
| Polarization |
Vertical |
| Lightning Protection |
DC Ground |
| Input connector type |
N male or Requested |
| Mechanica Specifications |
| Dimensions(mm) |
20*600 |
| Openrating temperature(℃) |
—45～85 |
| Radome color |
Gray, Black, White |
Fiberglass Antenna for base station
These series are heavy-duty, Omnidirectional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.
Product show:
1. Hundreds of antenna products for optional, they are used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
2. We provide a one-stop solution of antennas, coaxial cables, and plastic parts by your requirements. With our complete in-house design, R&D, testing, and manufacturing services.
3. More than 200 employees, and auto-assembly lines in the factory, no worries about the production capability.
4. By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provide excellent services.
