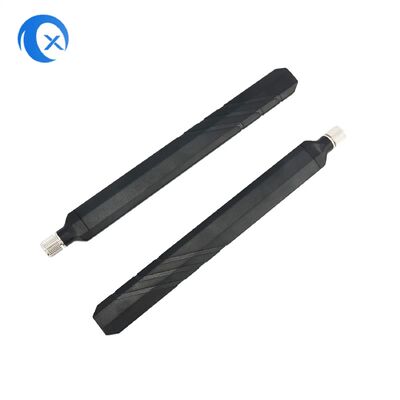

DVB-T Digital Video External Antenna with SMA Plug

DVB-T Digital Video External Antenna with SMA Plug
DVB-T Digital Video External Antenna with SMA Plug DVB-T Digital Video External Antenna with SMA Plug DVB-T Digital Video External Antenna with SMA Plug DVB-T Digital Video External Antenna with SMA Plug DVB-T Digital Video External Antenna with SMA Plug DVB-T Digital Video External Antenna with SMA Plug

Large Image :  DVB-T Digital Video External Antenna with SMA Plug

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 0.79
Contact Now

DVB-T Digital Video External Antenna with SMA Plug

Description
Model NO.: TX-AP204 Directionality: Omnidirectional Antenna
VSWR: 2 Base Antenna: High Gain Antenna
Nature Of Operation: Transmitting Antenna Sturcture Form: Surface Antenna
Dimensionality: Two-Dimensional Antenna Material: ABS
Frequency: 450-470MHz Antenna Gain: 2 DBi
Polarization: Linear Impedance: 50 Ohm
Radiator Material: PCB+Spring Operation Temperature: -20 ˚C ~ +60 ˚C
Storage Temperature: -40 ˚C ~ +80 ˚C
Highlight:

DVB-T digital antenna with SMA plug

,

external HDTV antenna for digital video

,

SMA plug digital TV antenna

DVB-T Digital Video External Antenna with SMA Plug
Electrical Characteristics
Frequency 450-470MHz
V.S.W.R <= 2
Antenna Gain 2 dBi
Polarization Linear
Impedance 50 Ohm

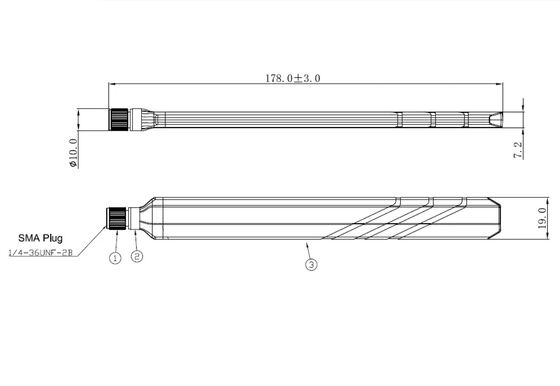

Material & Mechanical Characteristics
Material of Radiator PCB+Spring
Material of Plastic ABS
Cable Type /

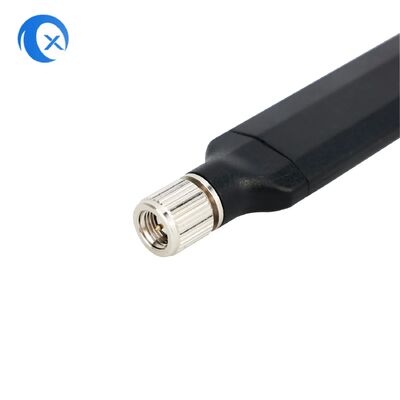

Connector Type SMA Plug
Environmental
Operation Temperature -20˚C ~ +60˚C
Storage Temperature -40˚C ~ +80˚C
DVB-T Digital Video External Antenna with SMA Plug 0 DVB-T Digital Video External Antenna with SMA Plug 1 DVB-T Digital Video External Antenna with SMA Plug 2

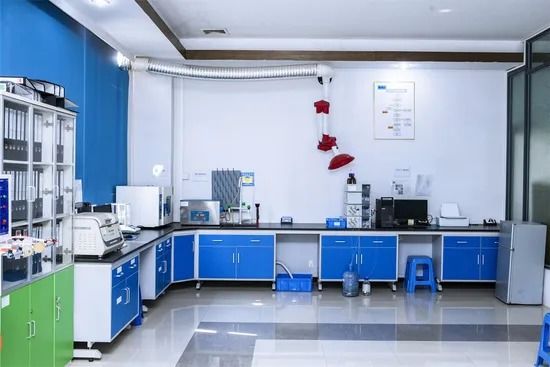

About Teng Xiang Electronics

Teng Xiang Electronics is an experienced manufacturer of RF products specializing in antennas, RF coaxial cable assemblies, and RF connectors. We deliver innovative technologies and solutions for the wireless industry, including 5G, 4G (LTE), 3G, 2G, WiFi, ISM, IoT solutions, Iridium communications, and GPS/GLONASS/BeiDou frequencies.

With expertise in telecommunications, security, automotive, medical, and IoT markets, we provide customized solutions through in-house design, R&D, and manufacturing. Our team is committed to developing high-quality products while delivering exceptional customer service.

DVB-T Digital Video External Antenna with SMA Plug 3 DVB-T Digital Video External Antenna with SMA Plug 4 DVB-T Digital Video External Antenna with SMA Plug 5
Why Choose Us?

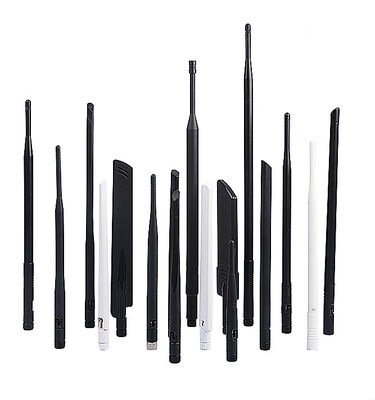

  • Hundreds of antenna products for communication, IoT devices, security cameras, smart home/city, automotive, medical, and drone applications
  • Customized solutions for antennas, coaxial cables, and plastic parts with in-house design, R&D, testing, and manufacturing
  • Over 200 employees and automated assembly lines ensuring reliable production capability
  • High-quality products at competitive prices with excellent customer service
