Product Details:
|
| Material: | ABS + SMA | Antenna Type: | Indoor |
|---|---|---|---|
| Frequency: | 868 Mhz Wifi | Impedance: | 50 Ohm |
| VSWR: | ≤1.5 | Gain: | 3 Dbi |
| Polarization: | Vertical | Radiation: | Omni-directional |
| Connector: | SMA Plug Connector Or Custom | Size: | 10x109mm |
| Highlight: | 868 mhz whip antenna,868 mhz dipole antenna |
||

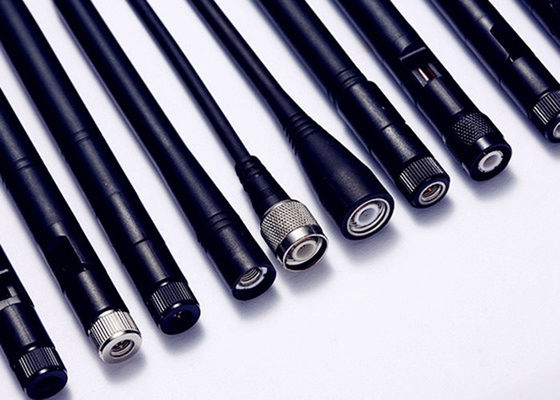

Long range high gain L angle SMA male connector 868mhz frequency antenna
Black color Rubber duck Long range high gain L angle SMA male connector 868mhz frequency antenna AP wifi router antenna, this antenna can be bended for 90 degrees.
Reliability test:
| Project | Test condition | Result |
| Storage environment |
Temperature, humidity, air pressure test are as follows: 1.Temperature: -30℃~+80℃ 3.Pressure: 86kpa-106kpa |
Normal electrical and mechanical properties |
| High and low temperature test | The 5 cycle is between 70℃ and 40℃. Then check the appearance quality | Meet the mechanical and electrical properties |
| Resistance to constant damp heat test | Humidity 95+3%, temperature: 40 degrees celsius. Continuous 2H | Meet the mechanical and electrical properties |
| Vibration test | Vibration frequency 10-55HZ, displacement: 0.35MM, acceleration: 50.0M/S, Frequency sweep frequency: 30 times | Normal electrical and mechanical properties |
| Drop test | 1m height drop | Normal electrical and mechanical properties |
| Drawing force test | Push pull tester to test the strength of the instrument:≥10N | Normal electrical and mechanical properties |
| Voltage resistance |
1.Insulation spark voltage 1.5KV 2.Sheath spark voltage 1.5KV 3.Insulation resistance to sheath voltage 0.5KV |
Normal electrical and mechanical properties |
The company strictly according to the standard process for packaging products, ensure transportation safety.We support customers a variety of customized requirements, according to customer requirements for packaging.
We are sincere suppliers, by the good faith to win customers' trust in the world, protect the interests of the customers and can have a better and more long-term cooperation.
