Product Details:
|
| Connector: | SMA Male To RP SMA Female | Cable Type: | RG316 Or Customized |
|---|---|---|---|
| Total Length: | 200mm Or Customized | Impedance: | 50/75 Ohm |
| Jacket: | RoHs | Frequency: | DC To 6GHz |
| Conductor Material: | 100%Bare Copper | Type: | RF Coaxial Cable |
| Function: | Cable Adapter | Business Type: | OEM / ODM |
| Highlight: | rubber duck wifi antenna,wifi adapter antenna |
||

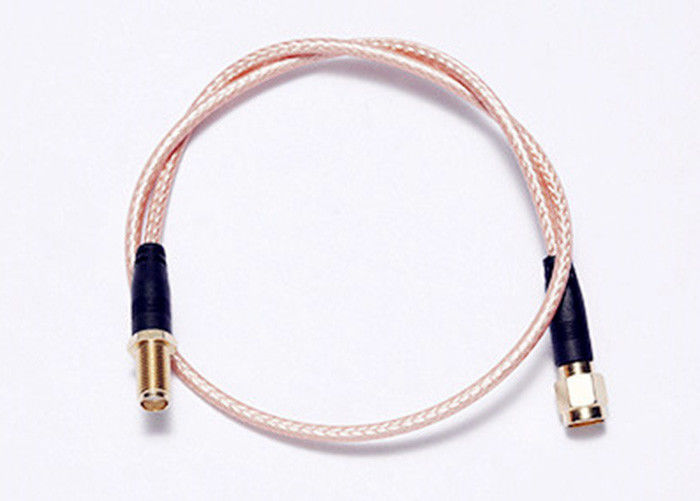

RF RG316 Antenna Cable Assembly SMA Male to RP SMA Female RF Coax Coaxial Jumper
| Product Name | RF RG316 Antenna Cable Assembly SMA Male to RP SMA Female RF Coax Coaxial Jumper |
| Connector | SMA Male to RP SMA Female,Gold Plated |
| Impedance | 50 ohm |
| Frequency | DC to 6GHz |
| V.S.W.R | <1.5 |
| Length | 20CM (Can be Customized) |
| RF Coaxial Cable | RG316 |
| High Quality | High temperature resistance, acid resistance, corrosion resistance, high frequency low loss and low impedance |
| Sample | 2-3pcs free samples |
| Packing | PE bag Bulk Packing |
Product Introduction
We offers a full range of pre-assembled, fixed length, standard cable assemblies. Standard assemblies are for use in a variety of commercial and industrial applications that require standard configurations or lengths. Cables are available with most commercially available RF connector series mounted to popular flexible cables as well as semi-rigid conformable (hand formable) cable. Custom assemblies are also available.
RG316 RF Coaxial Cable With SMA Connector Antenna Adapter have below features:
• 50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements;
• 50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating;
• Three grades of connectors are available for military, industrial and commercial applications.
Product Name: RG316 RF Coaxial Cable With SMA Connector Antenna Adapter
Tag: RG316 RF Cable with SMA Connector, Male SMA to SMA Connector, Straight/180°, 50Ω/75 Ω.
