Product Details:
|
| Connector A: | N Type Male | Connector B: | SMA Male |
|---|---|---|---|
| Total Length: | 150mm Or Customized | Impedance: | 50 Ohms |
| Jacket: | RoHs | Frequency: | DC To 18GHz |
| Connector Color: | Nickel And Gold | Type: | Coaxial Cable |
| Function: | Cable Adapter | OEM / ODM: | Yes |
| Highlight: | rubber duck wifi antenna,wifi extender antenna |
||

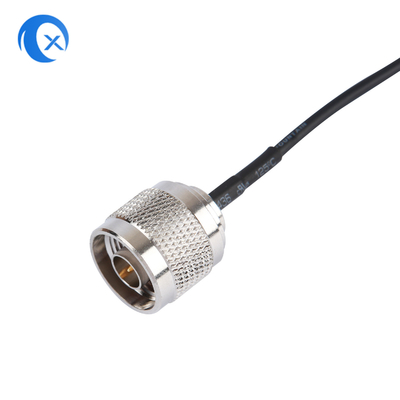

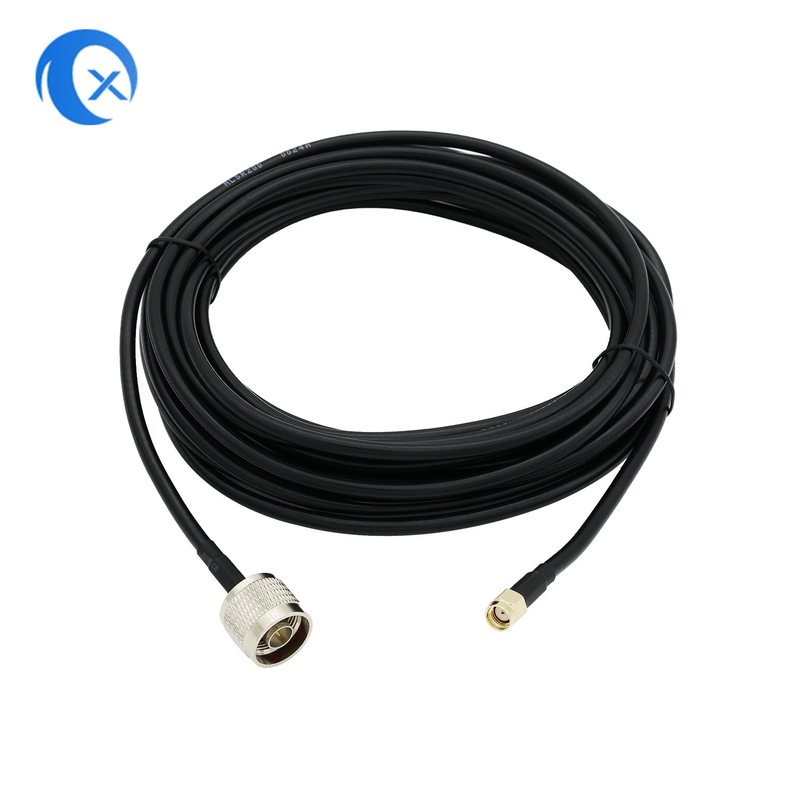

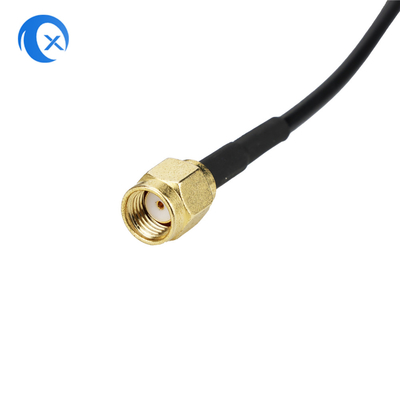

Customized Antenna RF Coaxial Cable assemblies LMR200 N Male to RPSMA connector
Specification
| ELECTRICAL DATA | |
| Impedance | 50 Ohm |
| Frequency range | DC-18Ghz |
| VSWR | 1.3 max |
| Voltage | 60V AC(rms) |
| Insulation Resisitance | 500 M Ohm min. |
| Insertion Loss | 0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ |
| MATERIAL DATA | |
| Bodies | Brass--gold/nickel plating |
| Pin contacts | Brass--gold plating |
| Socket contacts | Copper-beryllium alloy--Au plating |
| Insulator | PTFE |
| Cable type | 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240,LMR400,Semi-rigid,semi-flexible,super flexible, Formable,etc |
| Application | smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc |
| Temperature range | -40°C to +80°C/200°C |
Feature
This product line features popular coaxial cable, RF connectors, RF cable, and other high-quality coaxial products such as SMA connectors, coax adapters, and tools.
RF Coaxial cable assemblies are available in 50 Ohm and 75 Ohm styles. In addition, We stock hundreds of low loss 50 Ohm antenna RF cable assemblies, pigtails, and bulk cable for all your wireless connectivity needs.
Coax interfaces include: BNC, SMA, TNC, Type F, RCA, SMB, MCX, MMCX, Type-N, and more. We carry coax RF connectors and tools such as cable strippers, coaxial crimp tools, compression tools, and pin crimp tools to accommodate all of your coaxial termination requirements.
