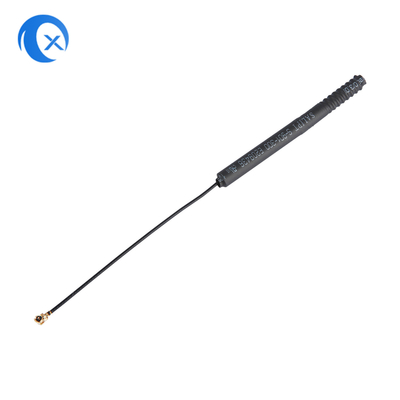

Tube Built In Omni Wifi Antenna 2.4G Antenna Wireless Wifi With TS9 Connector

Tube Built In Omni Wifi Antenna 2.4G Antenna Wireless Wifi With TS9 Connector
Tube Built In Omni Wifi Antenna 2.4G Antenna Wireless Wifi With TS9 Connector Tube Built In Omni Wifi Antenna 2.4G Antenna Wireless Wifi With TS9 Connector

Large Image :  Tube Built In Omni Wifi Antenna 2.4G Antenna Wireless Wifi With TS9 Connector

Product Details:
Place of Origin: Guangdong China
Brand Name: TX
Certification: ROHS CE ISO9001
Model Number: TX-AD-02
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Price Discussion
Packaging Details: 2PCS PER SMALL BAG, 100PCS PER CARTON
Delivery Time: 15-20 WORK DAYS
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000PCS PER DAY

Tube Built In Omni Wifi Antenna 2.4G Antenna Wireless Wifi With TS9 Connector

Description
Type: Tube Antenna Material: Tube
Frequency Center: 2.4~2.5 Ghz Connector: Ts9
Impendance: 50 Ohms Cable Type: RG 0.81 / 1.13
Operating Temperature(°c): -40℃~+60℃ Storage Temperature(°c): -40℃~+65℃
Maximum Input Power(W): 20W Half-power Beam Width(°): H:360 V:6
High Light:

outdoor omni antenna

,

lte omni antenna

Tube built in antenna 2.4G Antenna Wireless Wifi Omni Directional Antenna with Ts9 connector



Tube built in antenna 2.4G Antenna Wireless Wifi Omni Directional Antenna with Ts9 connector



Type: Tube Antenna Material: Tube
Frequency Center: 2.4~2.5 Ghz Connector: Ts9
Impendance: 50 Ohms Cable Type: RG 0.81 / 1.13
Operating Temperature(°c): -40℃~+60℃ Storage Temperature(°c): -40℃~+65℃
Maximum Input Power(W): 20W Half-power Beam Width(°):



1, Electrical Characteristics
i) Resonate Frequency :2.4~2.5 GHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V

2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs

Rotating Direction: 2.0 kgcm


3, Others:
Any modification of this specification has to be agreed by us
