Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi

Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi
Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi

Large Image :  Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi

Product Details:
Place of Origin: China
Brand Name: TX
Certification: ISO
Model Number: TX-HG029
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 5.5-7.9 USD
Packaging Details: Paper carton
Delivery Time: 2 weeks
Payment Terms: T/T
Supply Ability: 100k Per month

Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi

Description
Product Name: 868 MHz Antnena Frequency: 863-870 MHz
Gain: 3 DBi VSWR: ≤2.0
Input Impedance(Ω): 50 Polarization: Vertical
Connector: N Female Connector Radone Color: Grey, Black, White
High Light:

Flexible LoRa Fiberglass Antenna

,

Omnidirectional LoRa Fiberglass Antenna

,

Outdoor 868 MHz Antenna

 Outdoor Omnidirectional Fiberglass Lora Antenna 868MHz 3dBi Flexible Easy to Stall


Features:
1. Strong anti-shock, waterproof, and anti-corrosion ability.
2. Work around the clock.
3. Optimized size and frequency band.
4. High gain, low standing wave, strong anti-interference ability.


Electrical Specifications of Ultra-wideband fiberglass antenna

Frequency range(Hz)

863-870 MHz

Gain (dBi)

3

VSWR

≤2.0

Input impedance(Ω)

50

Polarization

Vertical

Lightning Protection

DC Ground

Input connector type

N female or Requested

Mechanica Specifications

Dimensions(mm)



Openrating temperature(℃)

—45~85

Radome color

Gray, Black, White



Fiberglass Antenna for base station

These series are heavy-duty, Omnidirectional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.

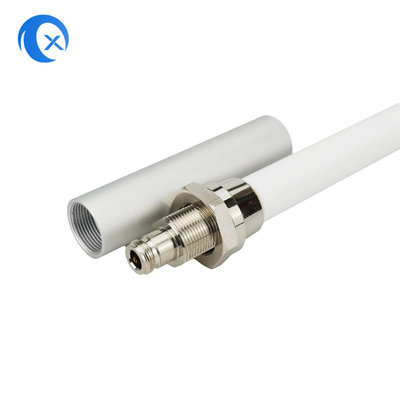

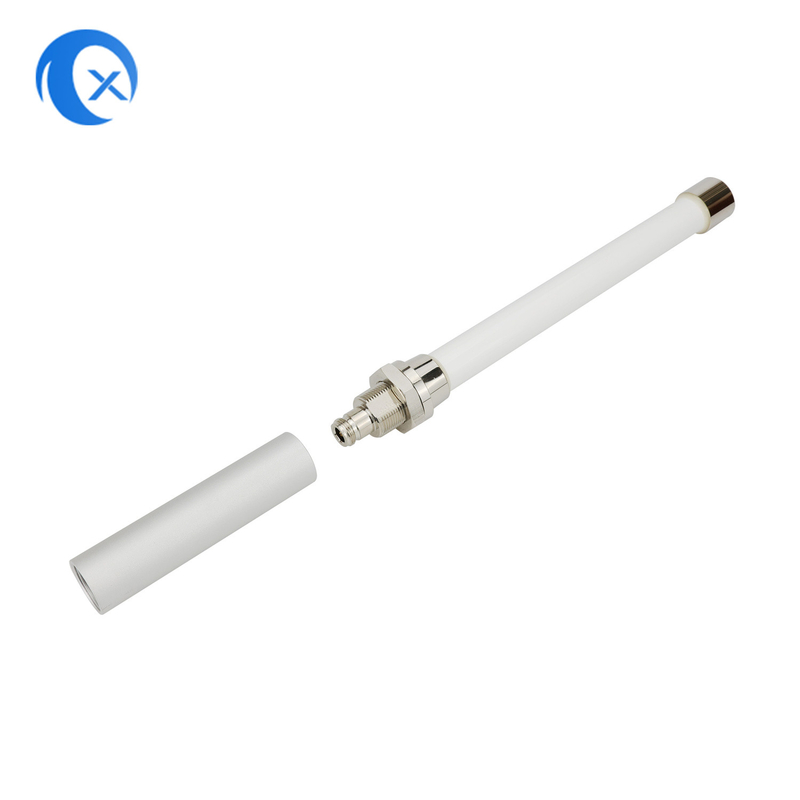

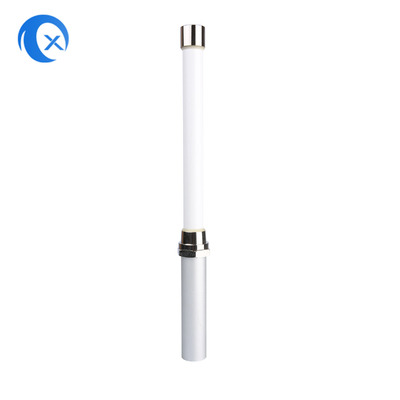

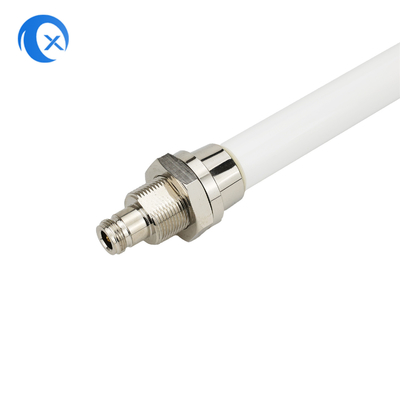

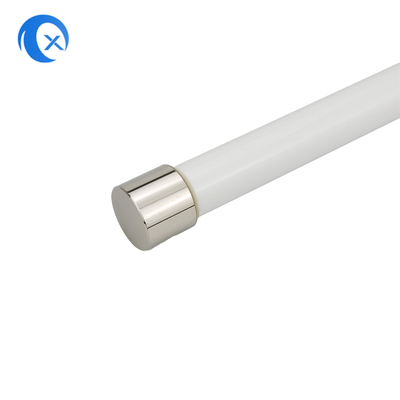

Product show:





Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi 0Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi 1Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi 2Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi 3





Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi 4Outdoor Omnidirectional Flexible LoRa Fiberglass Antenna 868 MHz 3dBi 5



Why choose us?

1. Hundreds of antenna products for optional, they are used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
2. We provide a one-stop solution of antennas, coaxial cables, and plastic parts by your requirements. With our complete in-house design, R&D, testing, and manufacturing services.
3. More than 200 employees, and auto-assembly lines in the factory, no worries about the production capability.
4. By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provides excellent services.
