Product Details:
|
| Product Name: | Omnidirectional WIFI Antenna | Frequency: | 2.4G |
|---|---|---|---|
| Gain: | 9 DBi | VSWR: | ≤2.0 |
| Input Impedance(Ω): | 50 | Polarization: | Linear |
| Connector: | N Male Connector | Radone Color: | Grey, Black, White |
| High Light: | 9dBi Omni WIFI Antenna,IP67 Waterproof Omnidirectional WIFI Antenna,Fiberglass Base Station Omni WIFI Antenna |
||

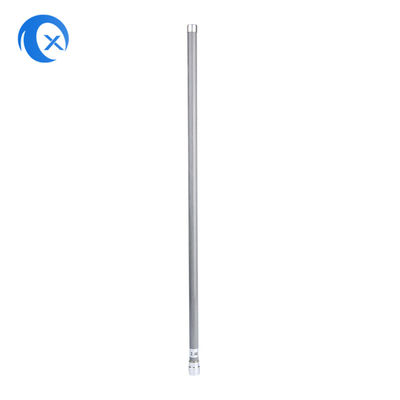

IP67 waterproof outdoor omni WIFI antenna 2.4G fiberglass base station antenna with N male connector
Omnidirectional Wi-Fi Antennas
Antennas are key components of these radio communication systems. Antennas pick up incoming signals or radiate outgoing Wi-Fi signals. Some Wi-Fi antennas, particularly on routers, are mounted externally, while others are embedded inside the device's hardware enclosure. Some radio antennas work with signals sent out and received from all directions. These omnidirectional antennas are commonly used on Wi-Fi routers and mobile adapters, supporting connections from multiple directions.
Omni WiFi antennas are generally used in public WiFi applications, farms and ranches, public parks, zoos, and recreation centers, along with most RV Parks and Marinas. An omnidirectional WiFi antenna, generally connects to an access point or router, via coaxial cable, or direct to the outdoor access point.
Regardless of the frequency, 2.4 GHz, 5.8 Ghz, 900 MHz, or specialized frequencies, Tengxiang has a WiFi antenna for all bands, for various applications.
Electrical Specifications of omnidirectional WIFI antenna
|
Frequency range(Hz) |
2.4G |
|
Gain (dBi) |
9 |
|
VSWR |
≤2.0 |
|
Input impedance(Ω) |
50 |
|
Polarization |
Linear |
|
Lightning Protection |
DC Ground |
|
Input connector type |
SMA Male, RP SMA, or Requested |
|
Mechanica Specifications |
|
|
Dimensions(mm) |
φ16*390 |
|
Openrating temperature(℃) |
—45～85 |
|
Radome color |
Gray, Black, White |
Product show:
