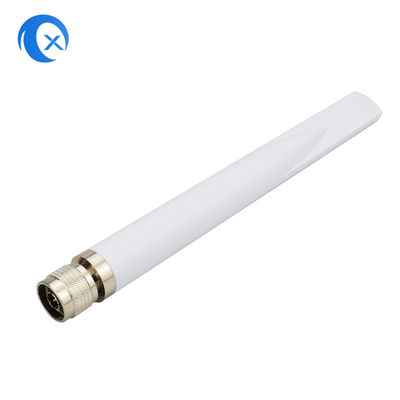

Outdoor IP67 5dBi 2.4 Ghz High Gain Omni Antenna N Male Linear

Outdoor IP67 5dBi 2.4 Ghz High Gain Omni Antenna N Male Linear
Outdoor IP67 5dBi 2.4 Ghz High Gain Omni Antenna N Male Linear

Large Image :  Outdoor IP67 5dBi 2.4 Ghz High Gain Omni Antenna N Male Linear

Product Details:
Place of Origin: China
Brand Name: TX
Certification: ISO
Model Number: TX-AP181
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 15-26 USD
Packaging Details: Paper carton
Delivery Time: 2 weeks
Payment Terms: T/T
Supply Ability: 100k Per month
Contact Now

Outdoor IP67 5dBi 2.4 Ghz High Gain Omni Antenna N Male Linear

Description
Product Name: Omnidirectional WIFI Antenna Frequency: 2.4G
Gain: 5 DBi VSWR: ≤2.0
Input Impedance(Ω): 50 Polarization: Linear
Connector: N Male Connector Radone Color: Grey, Black, White
Highlight:

2.4 ghz high gain omni antenna

,

Linear 2.4 ghz high gain omni antenna

,

Linear male coaxial cable

 2.4GHz outdoor IP67 waterproof Omni WiFi Antenna 5dBi with N type male Connector



Product features:

Tengxiang omnidirectional wifi antenna has the advantage of ultra-speed and stable signal. Increases the Range of Your Wireless Device Such as Router, Access Point, Mini PCIe Network Card, Wireless Wan Range Extender to long distance. Easy installation, simply replace current antenna to increase signal strength.  Wifi6------802.11ax/ac/n/a 2 x 2 & 802.11ax/n/b/g 2 x 2, MU-MIMO.


Electrical Specifications of omnidirectional WIFI antenna



Frequency range(Hz)

2400-2500 MHz

Gain (dBi)

5

VSWR

≤2.0

Input impedance(Ω)

50

Polarization

Linear

Lightning Protection

DC Ground

Input connector type

SMA Male, RP SMA, or Requested

Mechanica Specifications

Dimensions(mm)

φ22*230

Openrating temperature(℃)

—45～85

Radome color

Gray, Black, White



Omnidirectional Wi-Fi Antennas





Antennas for the 2.4GHz Frequency Band. A 2.4GHz antenna is a device that receives or transmits radio frequency at 2.4GHz. Wi-Fi technology typically uses two frequency bands the 2.4GHz and the 5.7 - 5.8GHz band. 2.4GHz is an older protocol that is an unregulated frequency.

Product show:



Outdoor IP67 5dBi 2.4 Ghz High Gain Omni Antenna N Male Linear 0Outdoor IP67 5dBi 2.4 Ghz High Gain Omni Antenna N Male Linear 1Outdoor IP67 5dBi 2.4 Ghz High Gain Omni Antenna N Male Linear 2Outdoor IP67 5dBi 2.4 Ghz High Gain Omni Antenna N Male Linear 3







Why choose us?

1. Hundreds of antenna products for optional, they are used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
2. We provide a one-stop solution of antennas, coaxial cables, and plastic parts by your requirements. With our complete in-house design, R&D, testing, and manufacturing services.
3. More than 200 employees, and auto-assembly lines in the factory, no worries about the production capability.
4. By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provides excellent services.
